Water Hammer Arrestor AW Pax 1/2" M x 3/4" F – Shower & Bath

Water hammer protection for exposed shower and bath fittings

Quick-closing valves in shower and bath mixers generate hydraulic shock waves — known as water hammer — causing pipe noise and premature wear of ceramic cartridges. The AW Pax 1/2" M x 3/4" F Chromeline absorber eliminates these shocks at the source, discreetly and durably.

Key benefits at a glance

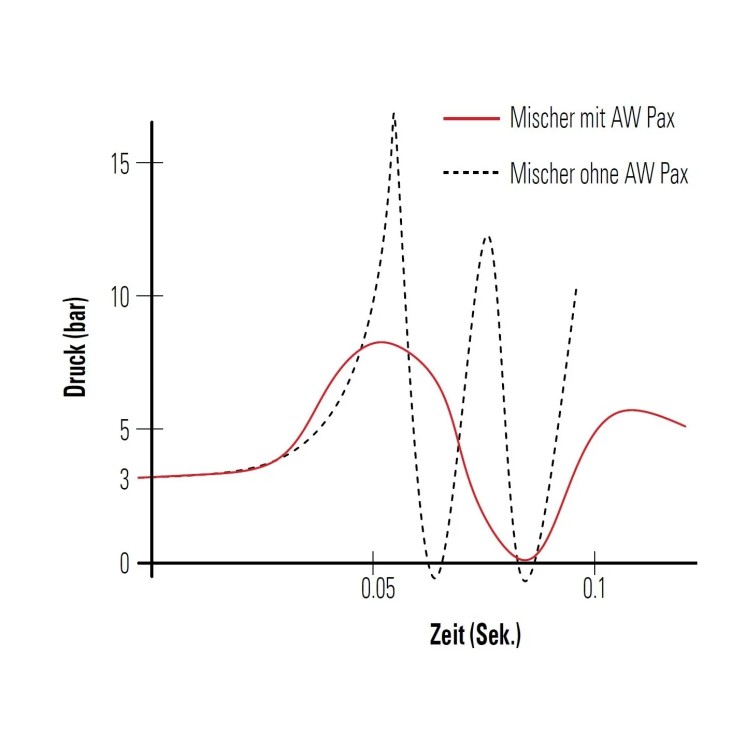

• Absorption of pressure peaks up to 25 bar
• Noise reduction of up to 5 dB(A)
• Compliant with Swiss standard SIA 181
• Chromeline finish — elegant and discreet
• G 1/2" M x 3/4" F connection with loose nut for easy installation

Installation

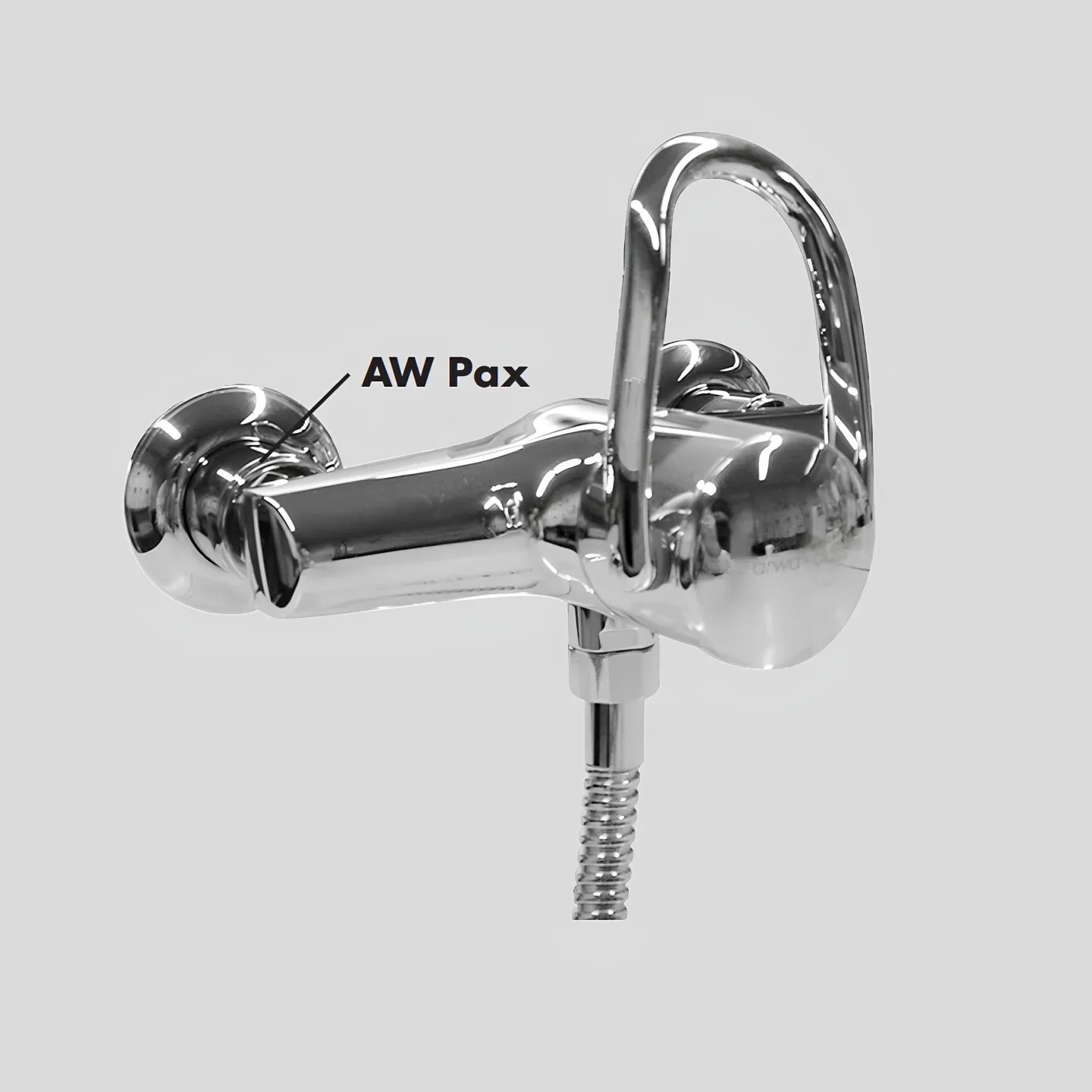

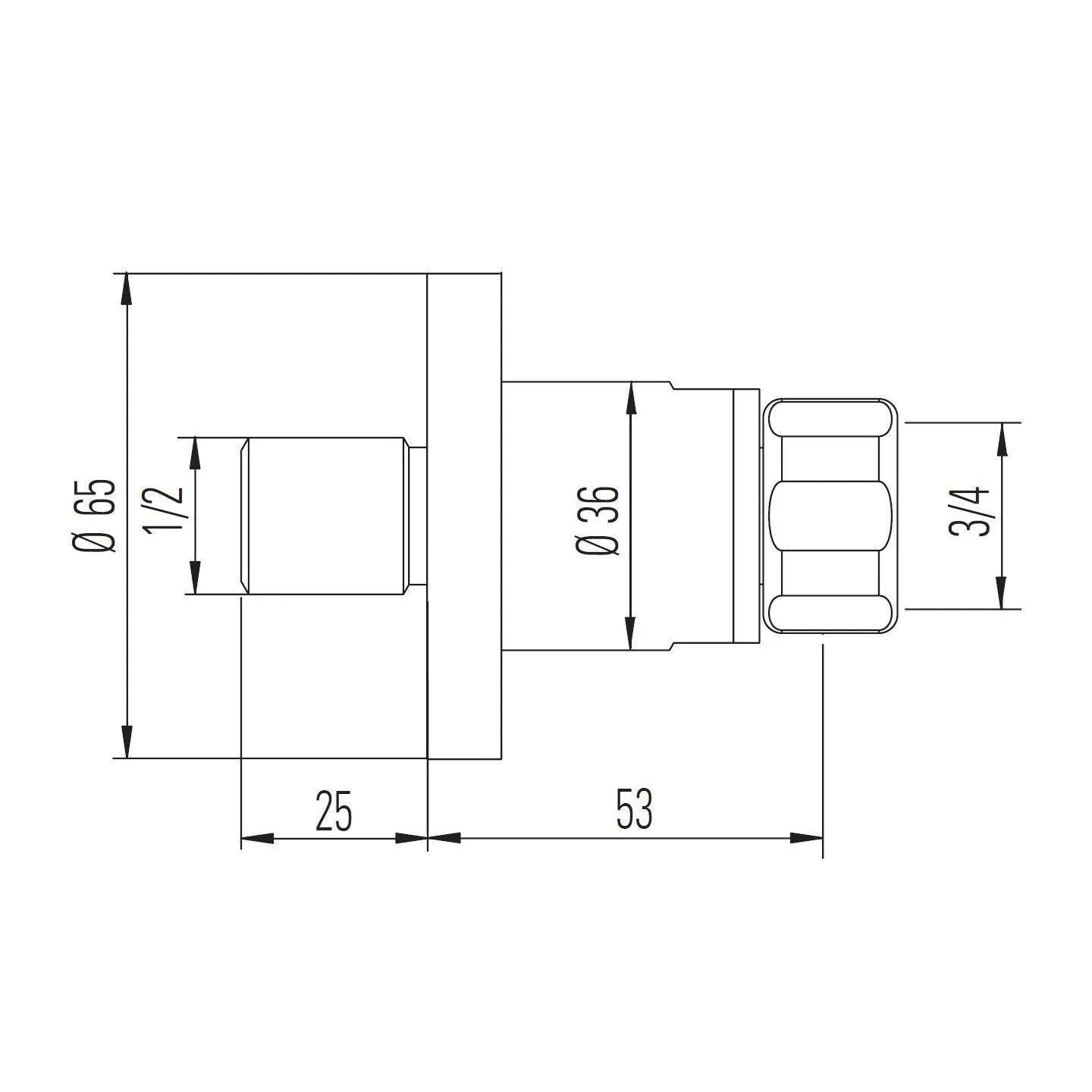

The arrestor is installed directly at the inlet of the exposed shower or bath fitting. The protrusion of L = 53 mm must be strictly observed during installation. Must be installed in pairs — one module on the hot water inlet, one on the cold water inlet.

Frequently asked questions

What is the difference with the 3/8"x1/2" and 1/2"x1/2" models?

This 1/2" M x 3/4" F model is specifically designed for shower and bath fittings with a 1/2" male and 3/4" female connection. Please check your mixer tap connection before ordering.

Why must the arrestor be installed in pairs?

Each mixer tap has two water inlets — hot and cold. For complete and effective protection, one arrestor must be installed on each inlet.

Which fittings is it compatible with?

Compatible with all standard exposed shower and bath fittings with a 1/2" M x 3/4" F connection. This connection is commonly used for mixer taps in Switzerland and Europe.
