Unicount Koax OT 2" – Water Meter without T-Fitting for TECEprofil (TECE)

Water meter without T-fitting for TECEprofil (TECE) in-wall installation systems

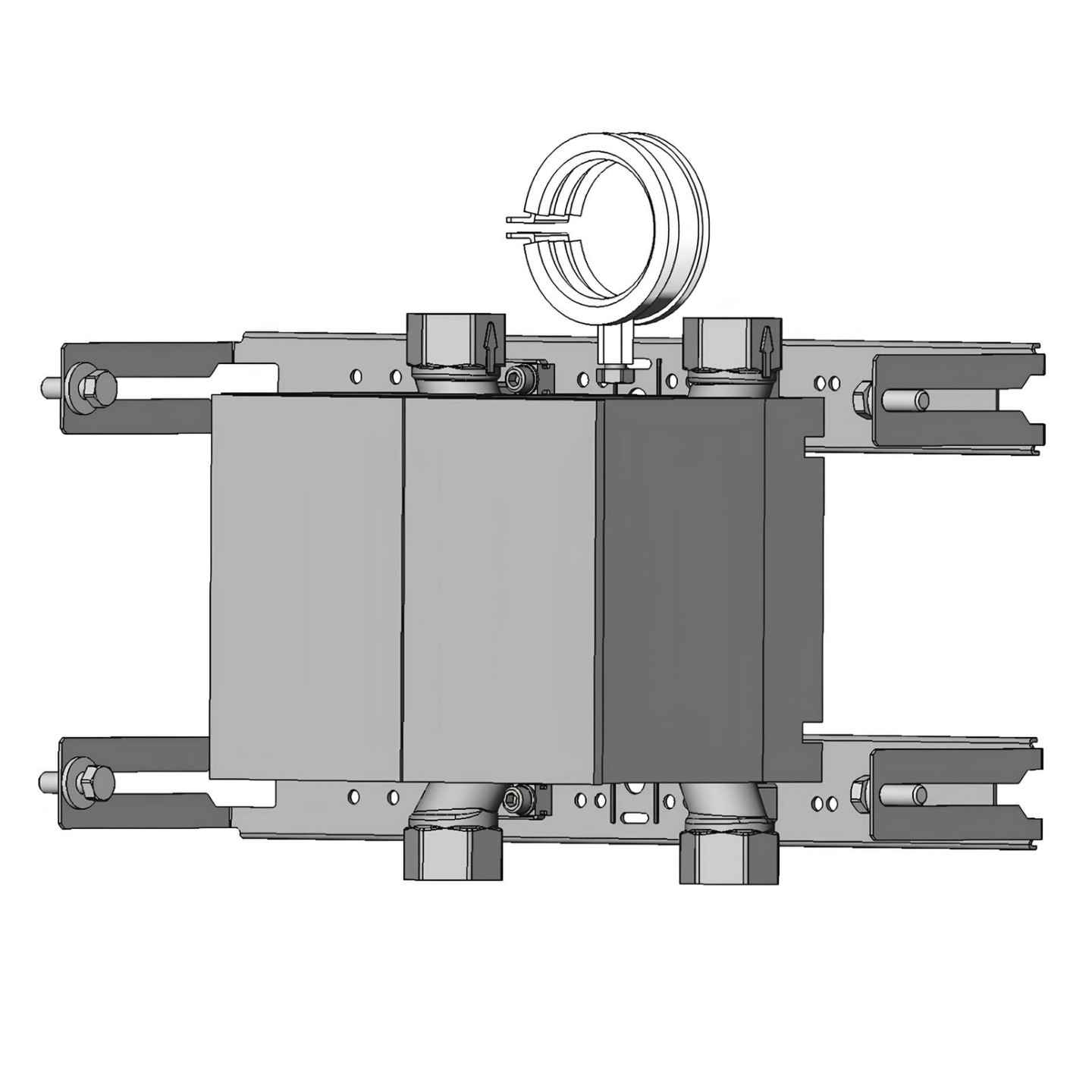

The Unicount Koax OT 2" is the variant without T-fitting, optimised for direct integration into TECEprofil (TECE) mounting rails, with a fixing centre distance of 440 mm. The unit positions and fixes directly onto the pre-mounted frame screws for immediate and secure alignment. Its compact design enables optimal integration even in reduced in-wall depths.

Key benefits at a glance

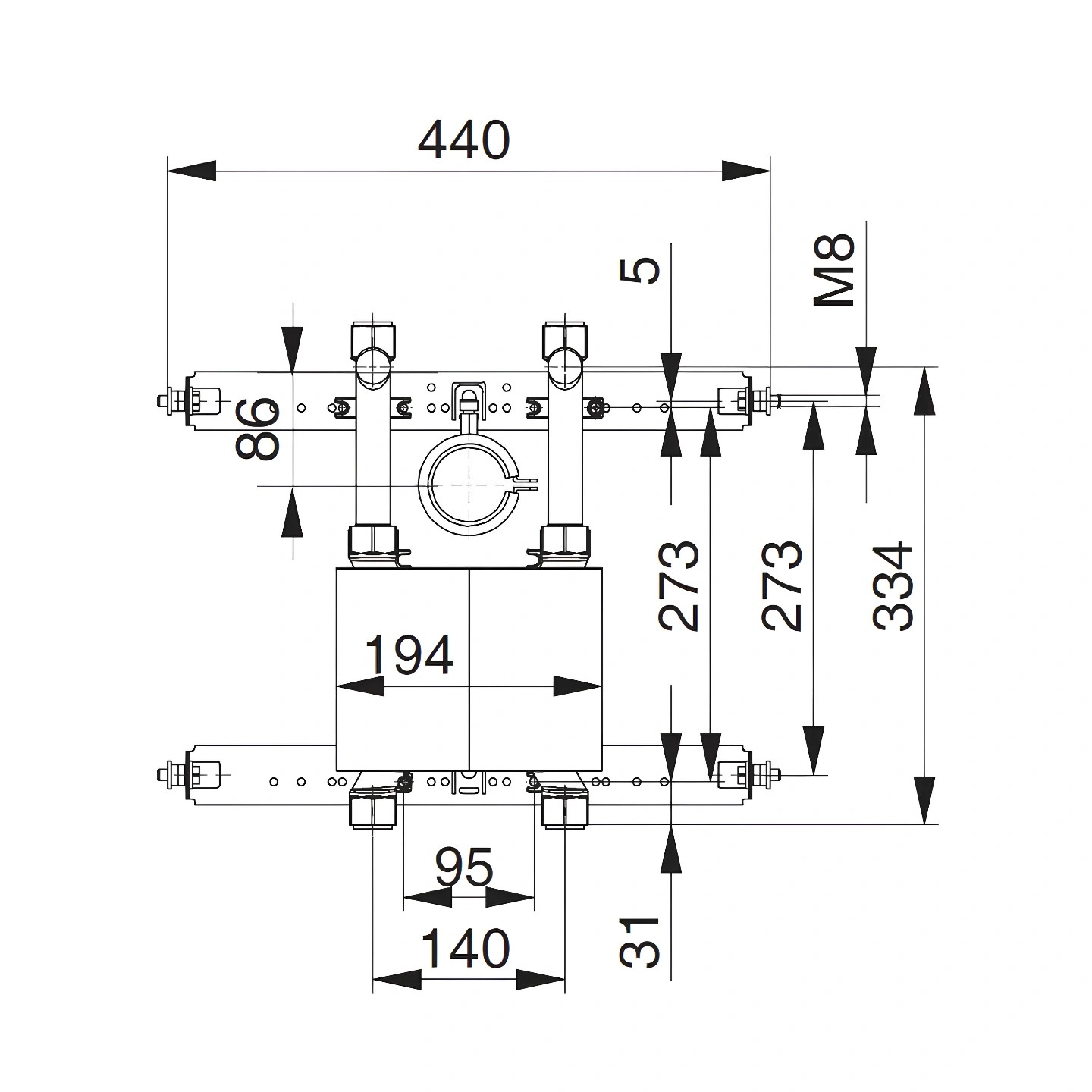

• Fixing centres 440 mm — direct compatibility with TECEprofil rails
• Compact design — optimal integration in reduced in-wall depths
• Cost-efficient solution — without T-fittings when already installed
• Acoustic insulation compliant with group I per ISO 3822
• Compatible with all Koax 2-inch measuring capsules on the Swiss market

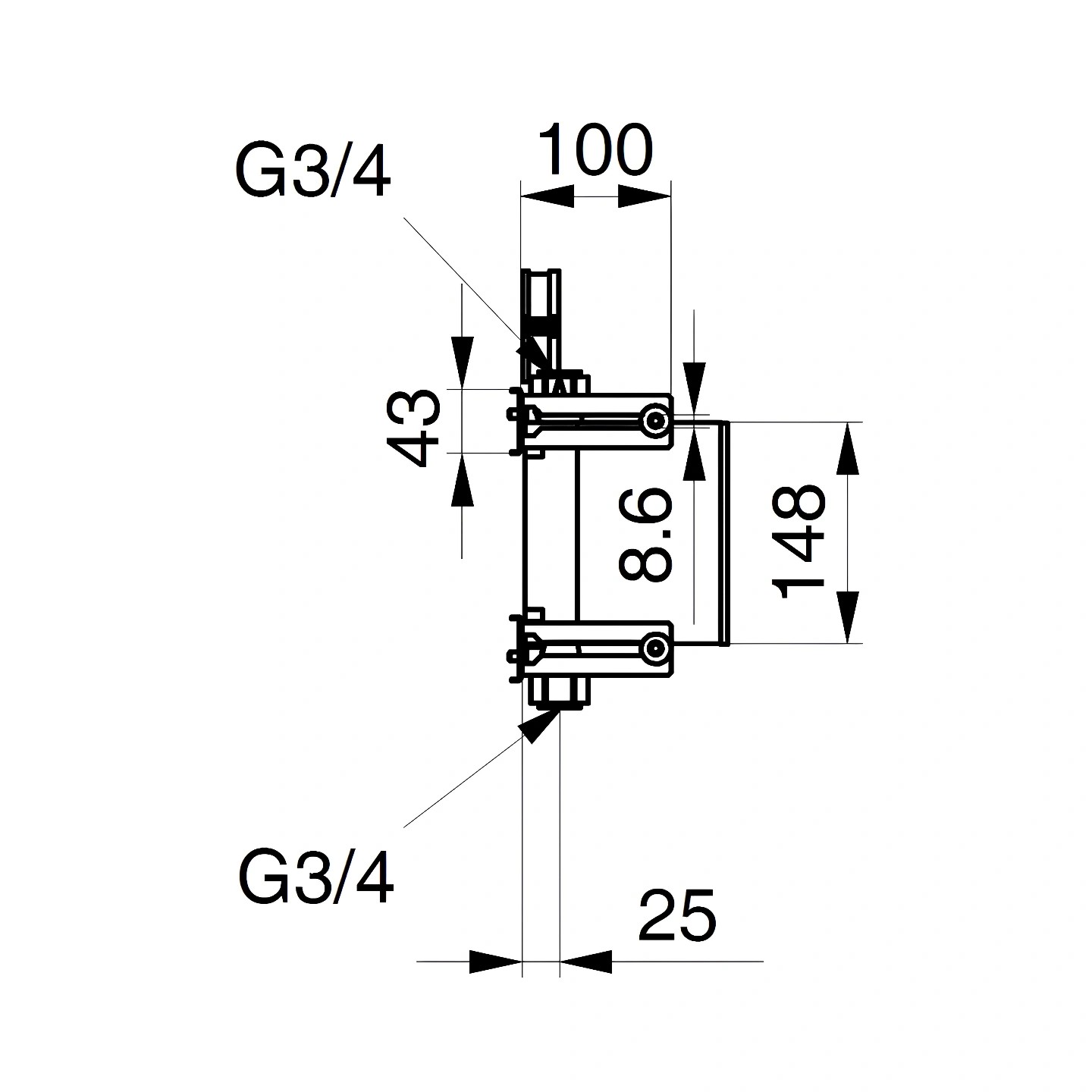

• Universal G 3/4" interfaces — no additional components required

Application

This OT model is recommended when T-fittings are already present or ordered separately. The ideal solution for large-scale projects using the TECEprofil system, where speed of installation, structural reliability and long-term durability are key criteria.

Frequently asked questions

What is the difference between the OT and T models?

The T model includes 2 T-fittings and 6 fixing sets. The OT model (without T) does not include T-fittings and is delivered with only 4 fixing sets — ideal when T-fittings are already in place or supplied separately.

What is the difference with the other OT models?

This model is designed for the TECEprofil system with 440 mm fixing centres. Other models have different fixing centres: 248 mm for Geberit GIS, 420 mm for Geberit DUOFIX and 430 mm for Nussbaum Optivis.

Are measuring capsules included?

No. Measuring capsules are sold separately. Compatible with all Koax 2-inch multijet capsules Qn 1.5 m³/h available on the Swiss market.
