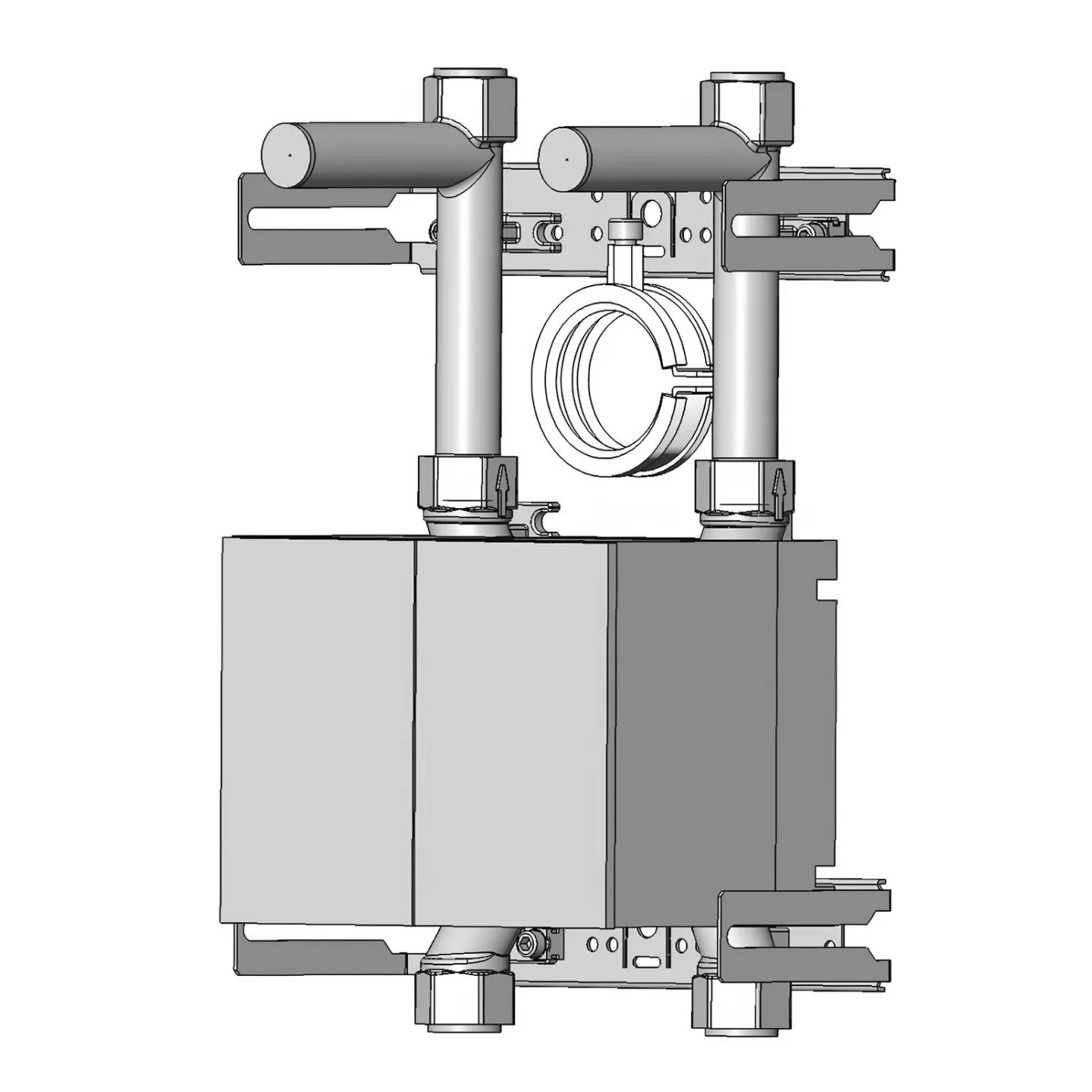

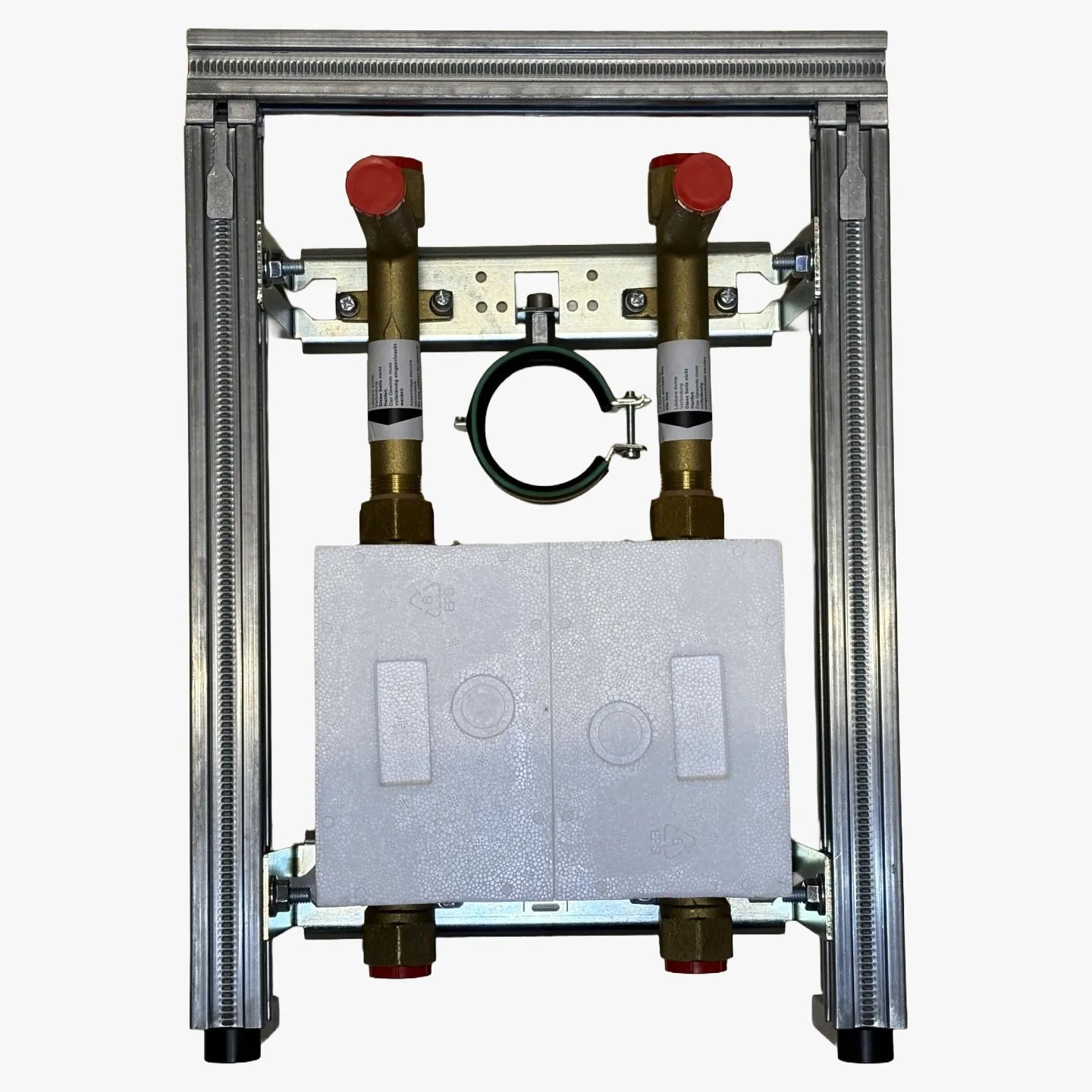

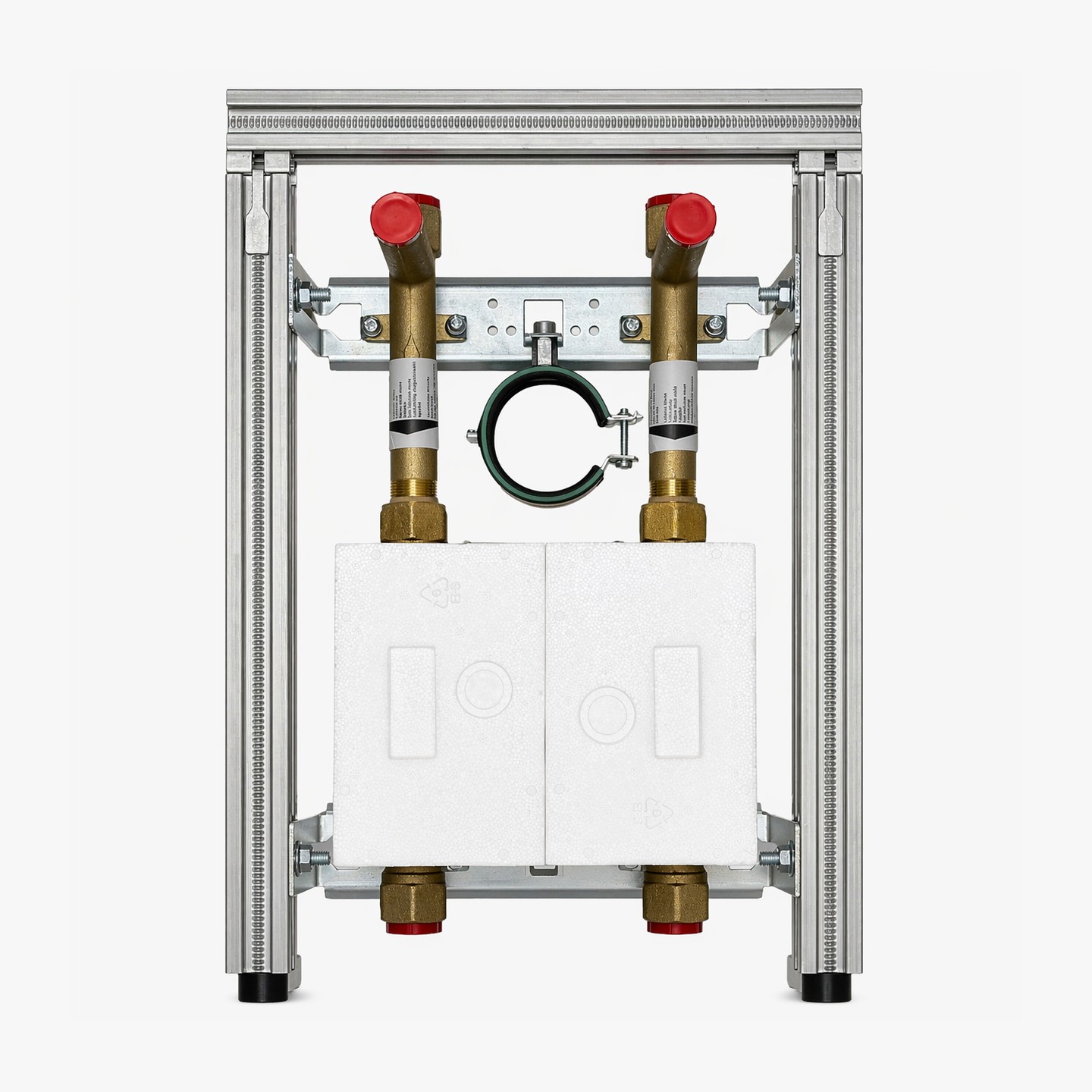

Unicount Koax T 2" – Water Meter for Geberit GIS In-Wall Installation System

Water meter designed for Geberit GIS in-wall installation systems

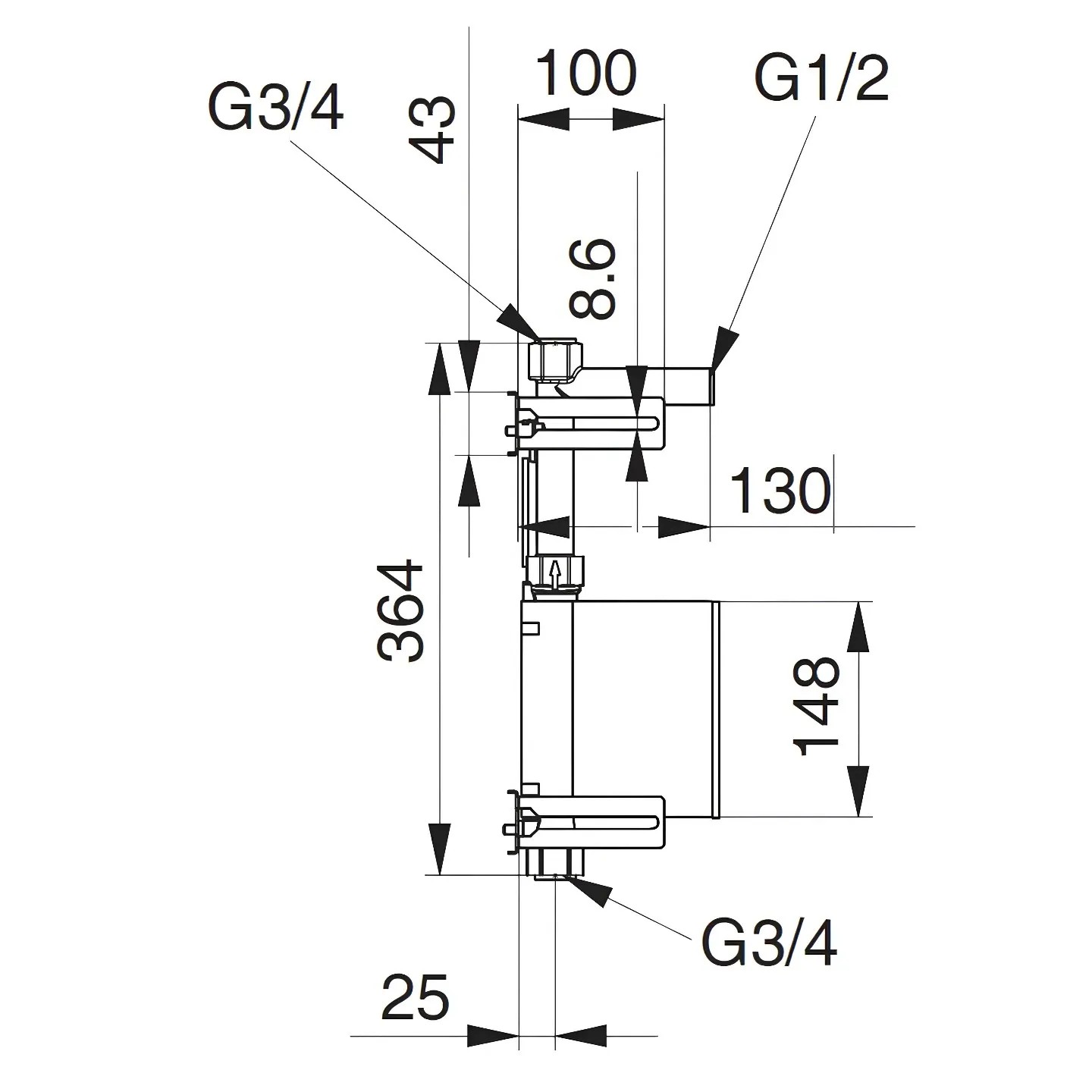

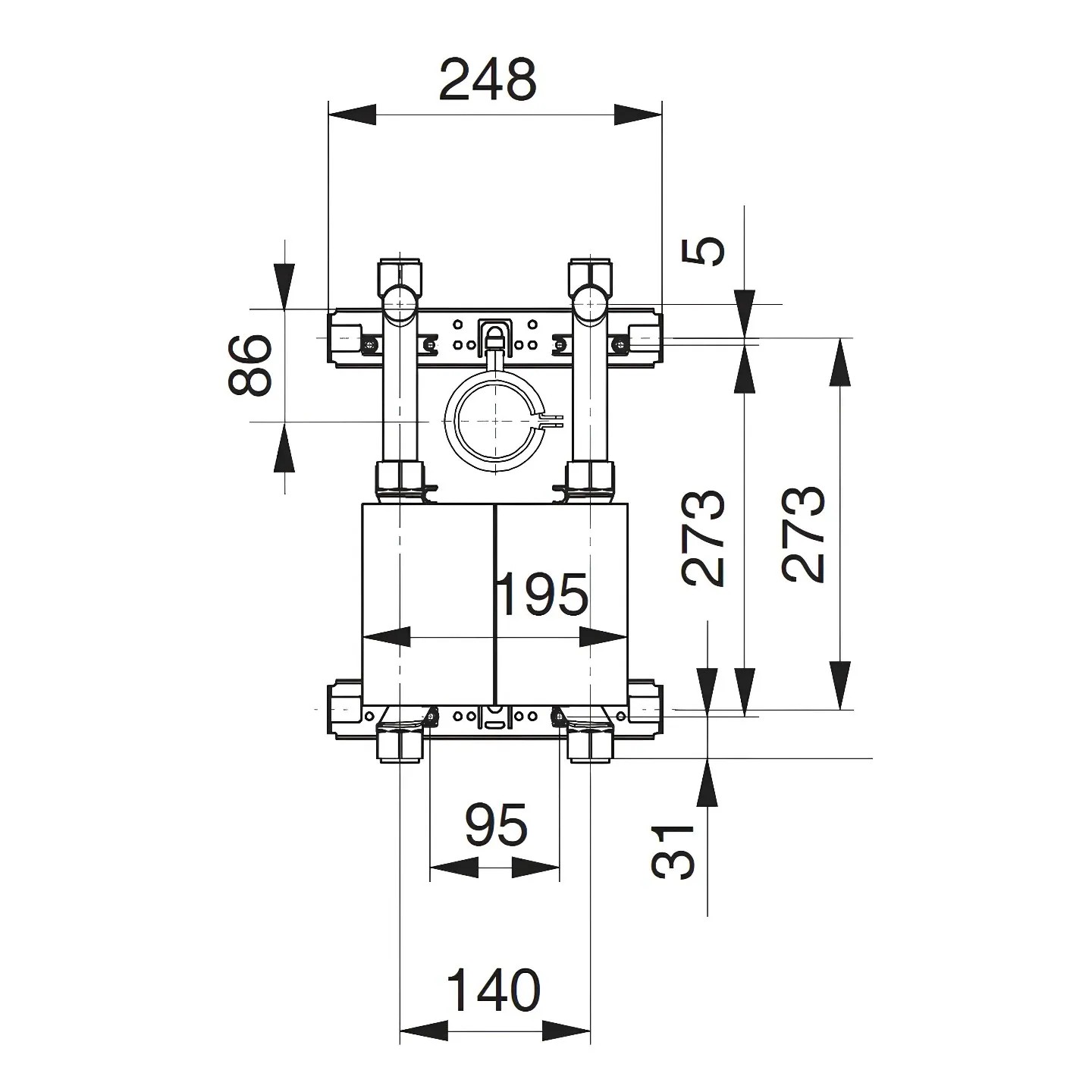

The Unicount Koax T 2" is specifically developed for direct integration into Geberit GIS in-wall installation systems, with a fixing centre distance of 248 mm. The two identical connection plates provide high-performance acoustic insulation, fully compliant with residential acoustic comfort requirements.

Key benefits at a glance

• Direct integration into the Geberit GIS frame — no on-site adaptation required
• Curved fixing tabs for precise positioning in slightly recessed configuration

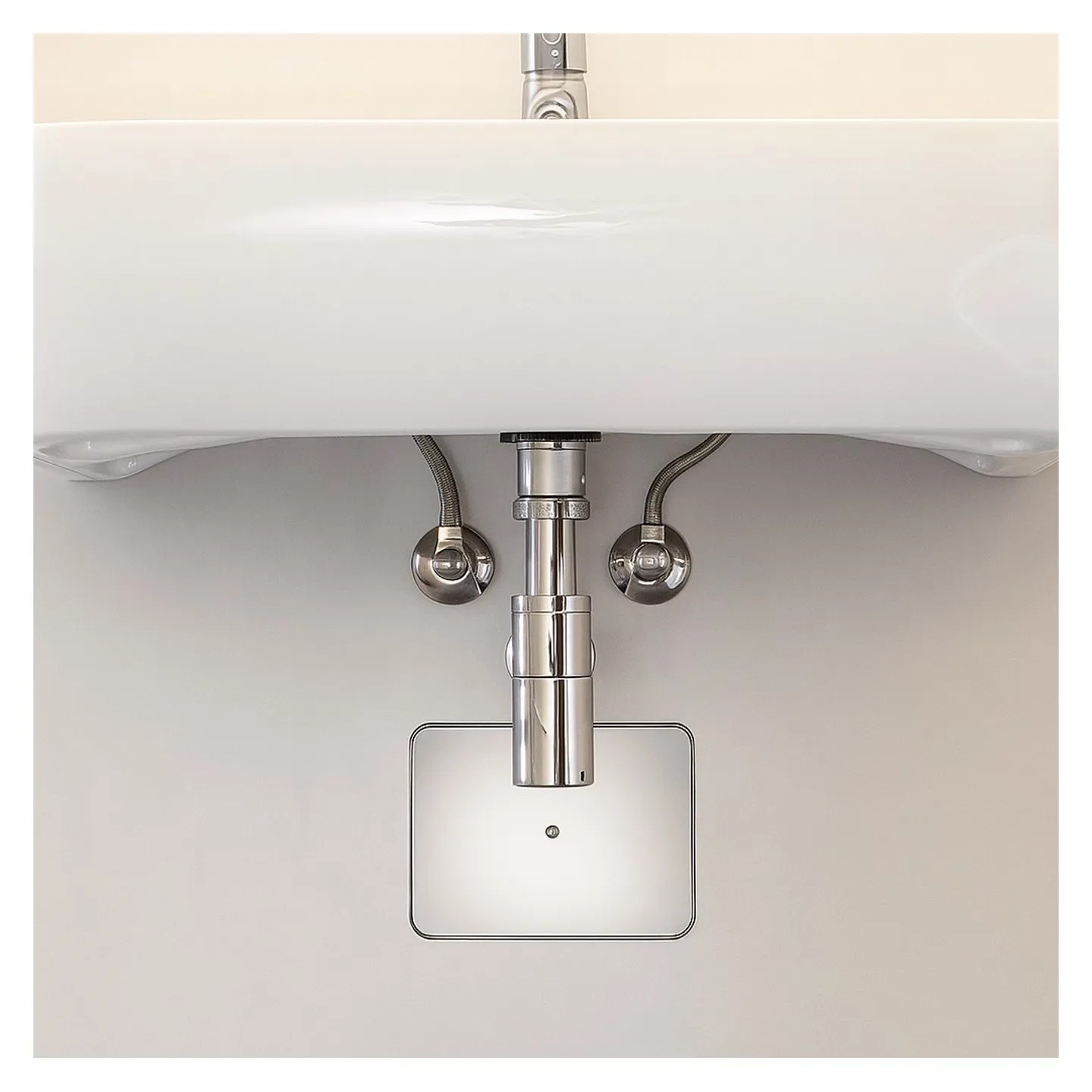

• Simplifies installation of cladding panels and final surface finishing
• Acoustic insulation compliant with group I per ISO 3822
• Compatible with Koax 2-inch measuring capsules Qn 1.5 m³/h
• Significant time saving for the installer

Application

This pack is the reference solution for planners and installers working with the Geberit GIS / DUOFIX system. Direct compatibility eliminates all on-site adaptation and guarantees optimal alignment with the supporting structure, ensuring long-term stability, reliability and acoustic performance.

Frequently asked questions

Is this product only compatible with Geberit GIS?

This Koax T model is specifically designed for the Geberit GIS system with 248 mm fixing centres and DUOFIX connection plates. For other in-wall systems, please refer to our other Unicount Koax configurations.

Are measuring capsules included?

No. Measuring capsules are sold separately. Compatible with Koax 2-inch multijet meters Qn 1.5 m³/h.

Is the clamp included?

No. The clamp is not included in this pack and must be ordered separately if required.
