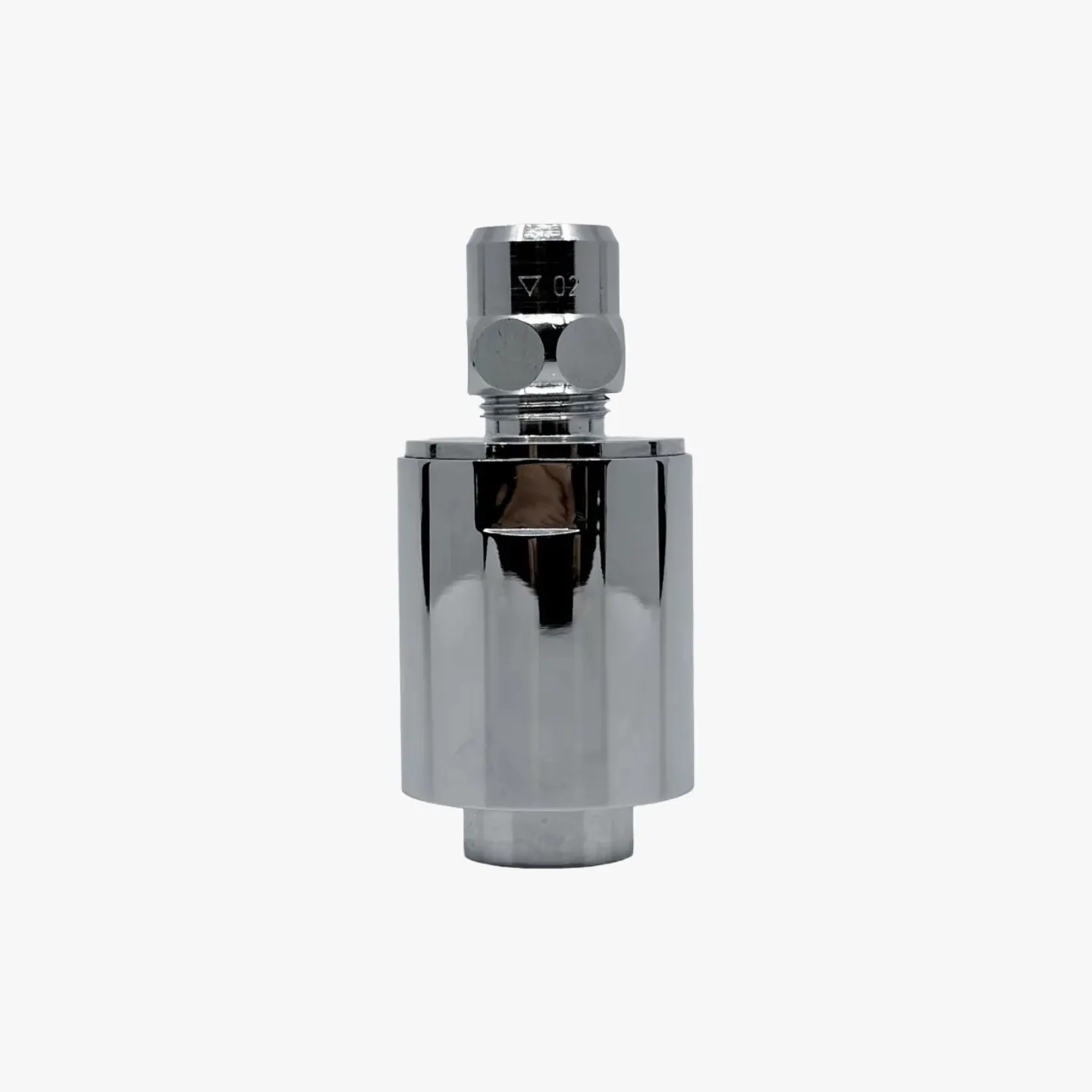

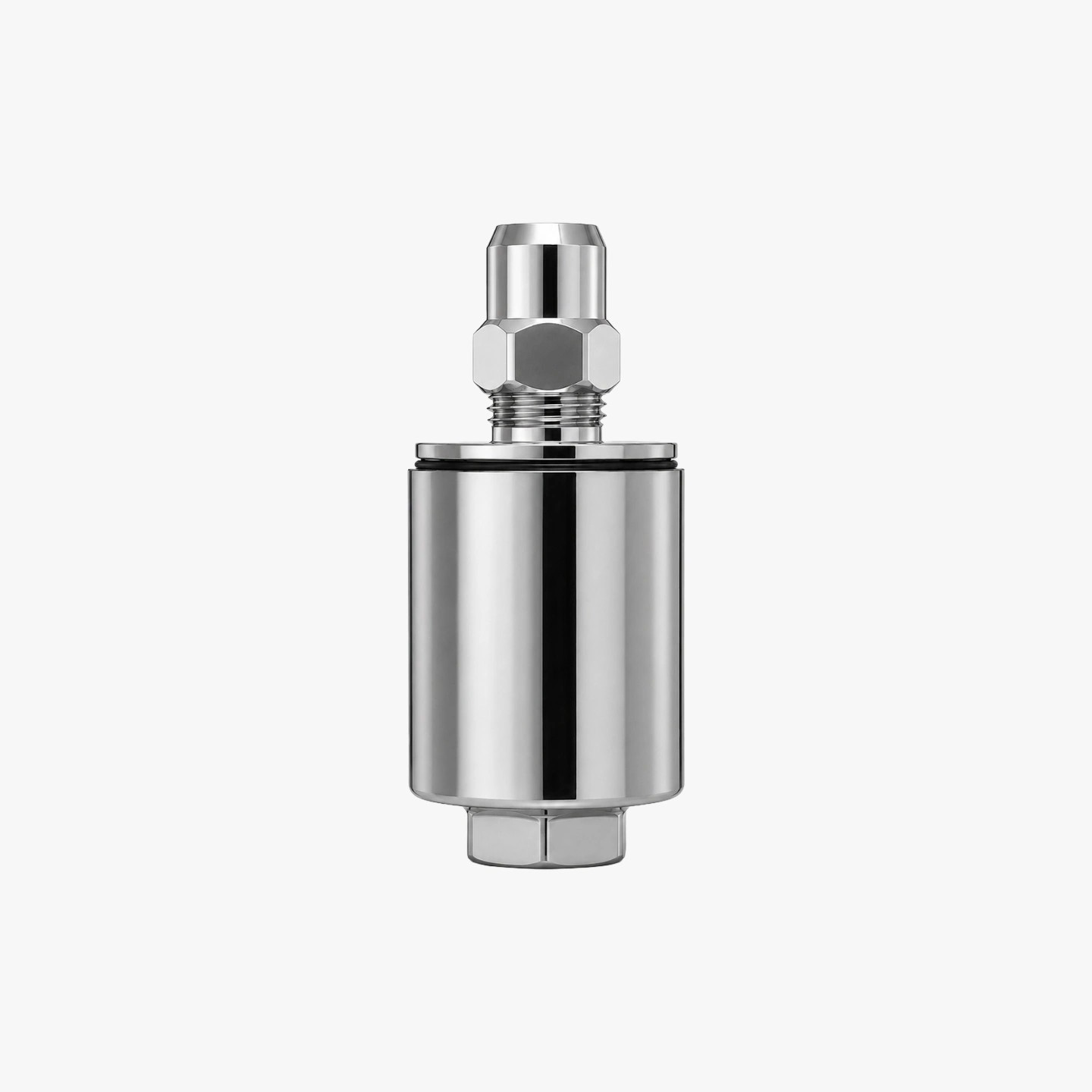

Water Hammer Arrestor AW Pax 3/8" x 3/8" – Single-Hole Faucet Basin & Sink

Water hammer protection for single-hole faucets

Quick-closing valves in single-hole basin and sink faucets generate hydraulic shock waves — known as water hammer — causing pipe noise and premature wear of ceramic cartridges. The AW Pax 3/8" x 3/8" absorber eliminates these shocks at the source, invisibly and durably.

Key benefits at a glance

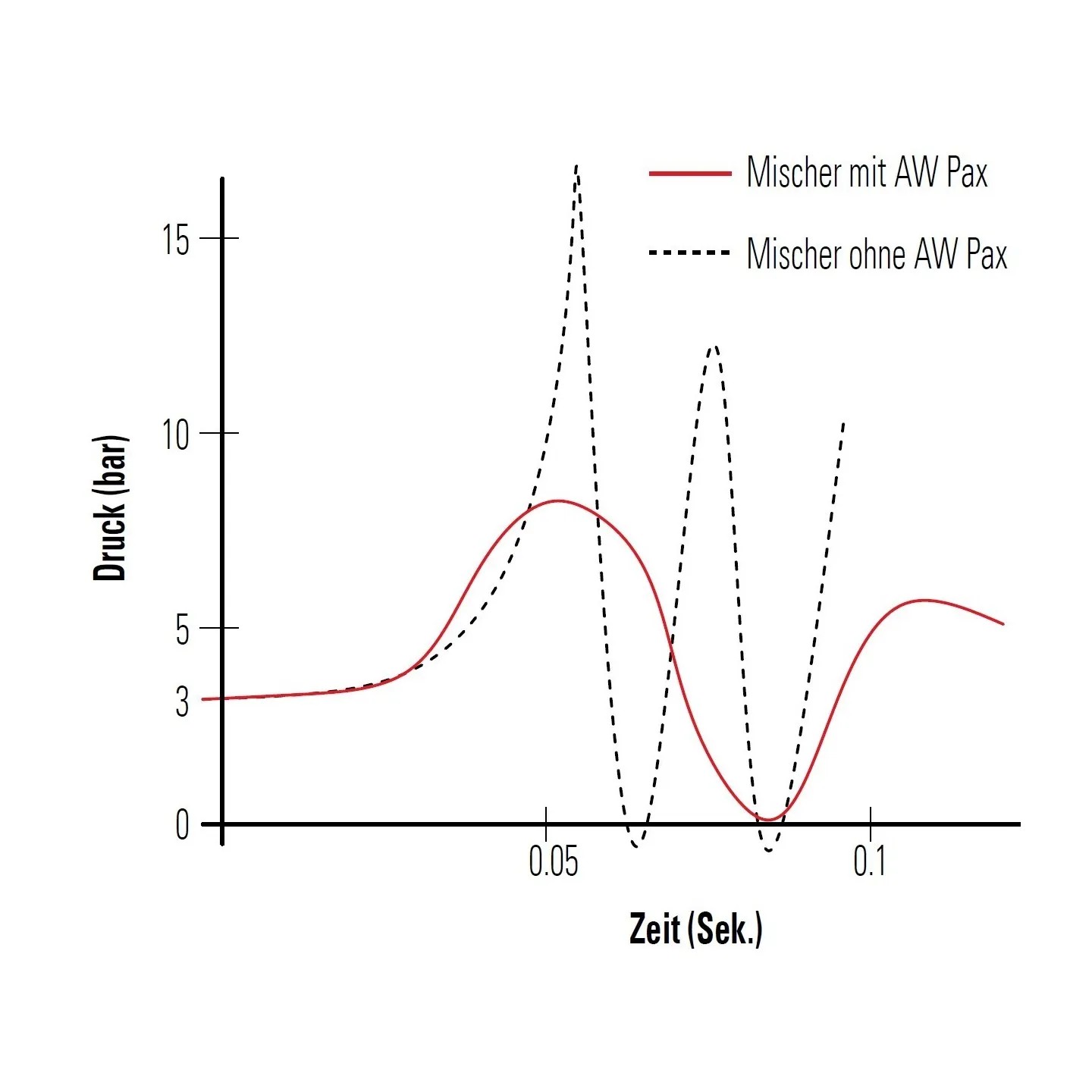

• Absorption of pressure peaks up to 25 bar
• Noise reduction of up to 5 dB(A)
• Compliant with Swiss standard SIA 181
• 3/8" x 3/8" connection with compression fitting Ø 10 mm
• Invisible integration under the basin or sink

Installation

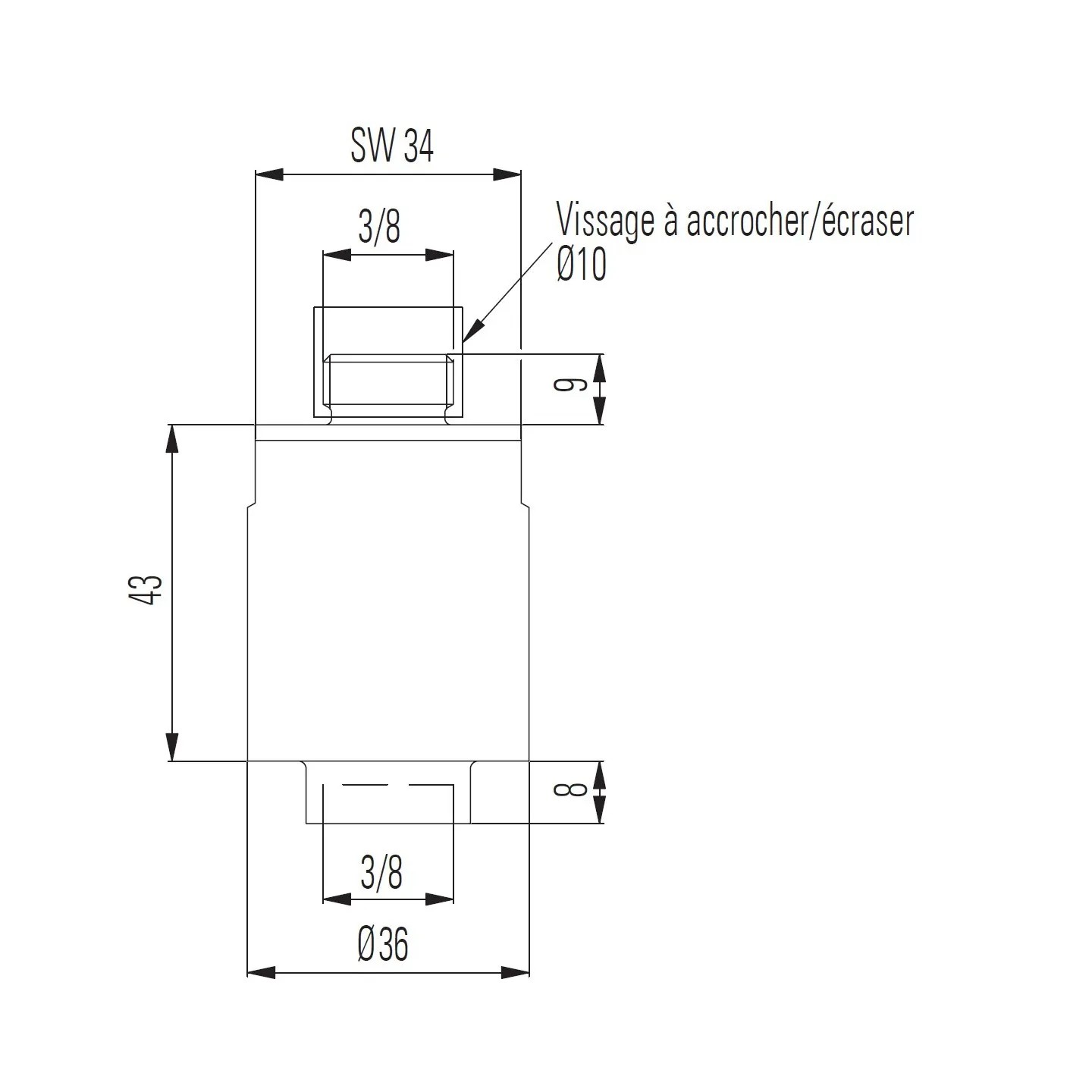

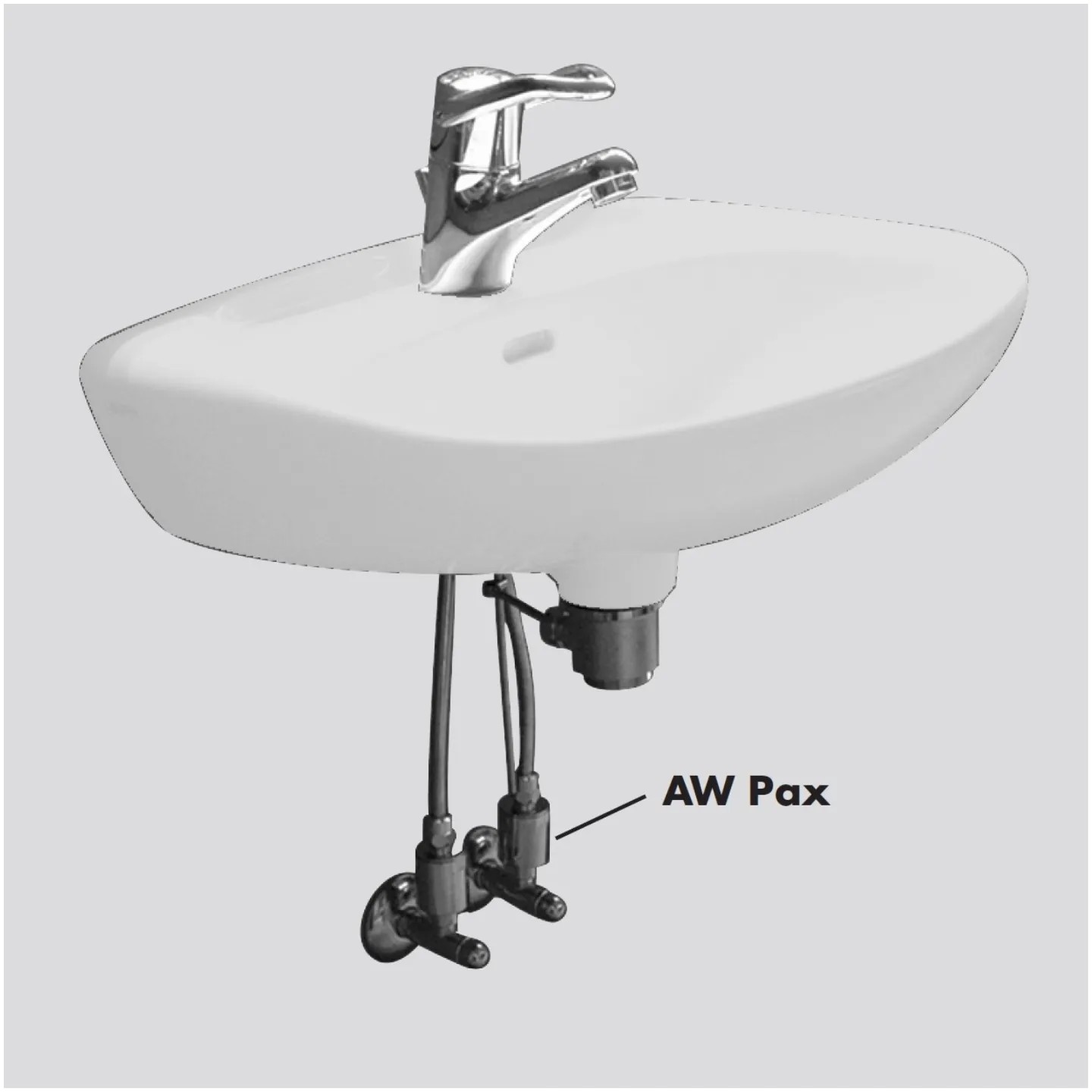

The arrestor is installed directly on the angle valve under the basin or sink. The protrusion of L = 43 mm must be strictly observed during installation. Must be installed in pairs — one module on the hot water inlet, one on the cold water inlet.

Frequently asked questions

What is the difference with the shower and bath models?

This model is specifically designed for single-hole basin and sink faucets with a 3/8" x 3/8" connection and Ø 10 mm pipe. The shower and bath models are designed for exposed fittings with different connections.

Why must the arrestor be installed in pairs?

Each single-hole faucet has two water inlets — hot and cold. For complete and effective protection, one arrestor must be installed on each inlet.

Which faucets is it compatible with?

Compatible with all standard single-hole faucets with a 3/8" x 3/8" connection — basin and kitchen sink. This is the most common connection for single-hole faucets in Switzerland and Europe.
